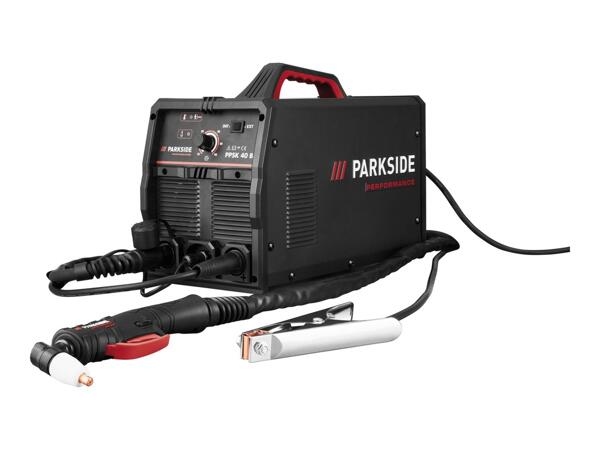

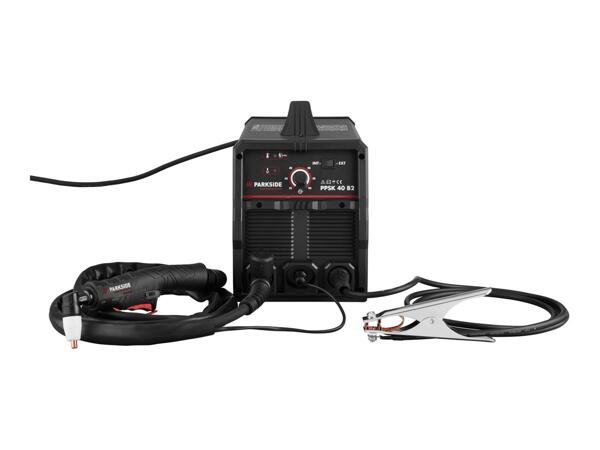

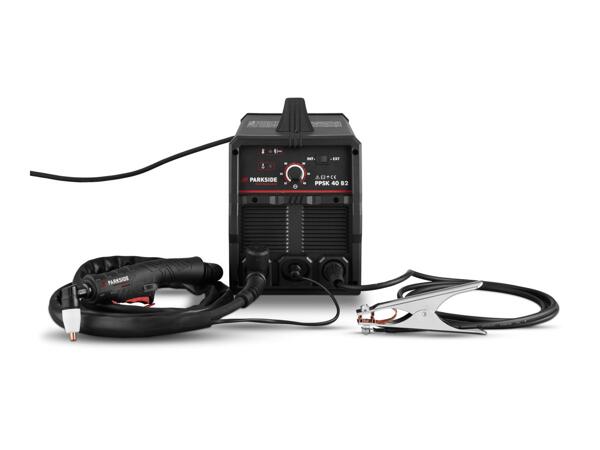

Plasma Cutter with Integrated Compressor

Warning : This class A welding device is not intended for use in residential areas where the power is supplied via a public low-voltage supply system
- With an integrated compressor - an external compressed air supply is not required
- Completely pre-assembled and ready for immediate use
- Portable - compact configuration and lightweight
- Electronically controlled, quiet and even plasma jet
- For precise and clean cuts through material up to 12mm thick
- Suitable for cutting steel, iron, stainless steel, aluminium and copper

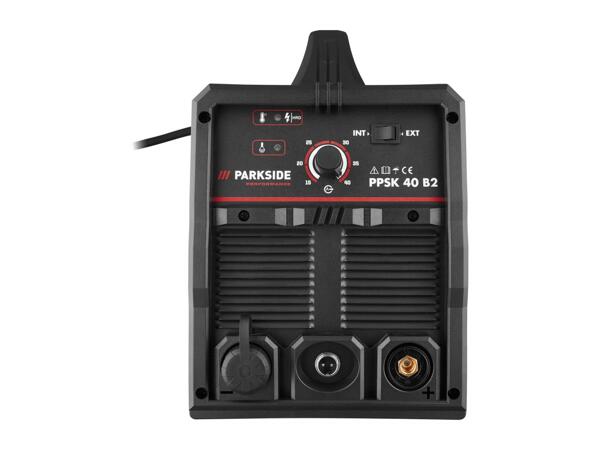

- Adjustable cutting current (15 to 40A)

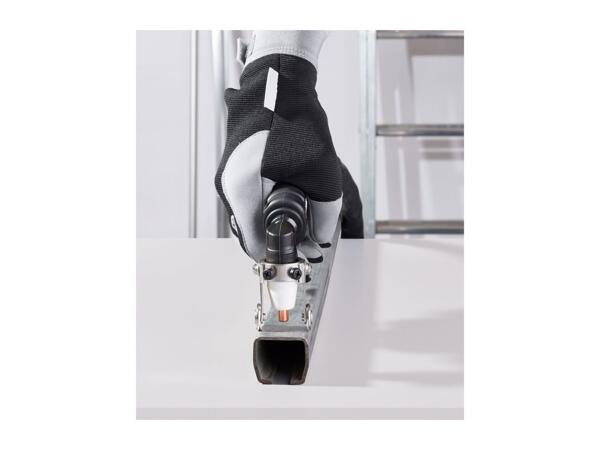

- High-quality cutting cable with exchangeable torch attachments and removable roller guide (cutting torch with cutting cable total length 2.5m)
- Earthing cable (2m) with strong clamp connection system

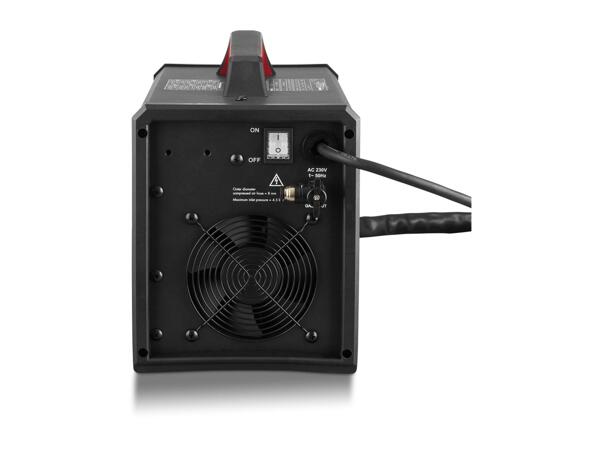

- Active electric fan cooling
- Overload protection thanks to the thermal monitor with indicator light
- Housing made from painted sheet steel with an ergonomic carrying handle
- Additional compressed air inlet for an alternative compressed air supply via an external compressor
- Cutting process: plasma jet, electronically controlled
- Cutting current: 15-40A
- Max. cutting capacity: steel 12mm / iron 10mm / stainless steel 8mm / aluminium 8mm / copper 4mm
- Compressed air supply: via the integrated compressor
- Working pressure when using an external compressor: 4-4.5 bar
- Main appliance weight: 9.8kg
- Rated voltage: 230V / 50Hz

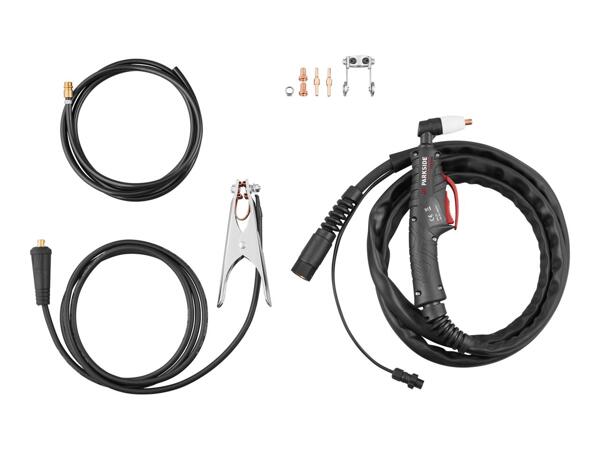

- Included accessories: 3 torch sleeves (1 pre-assembled), 3 electrodes (1 pre-assembled), 1 roller guide, compressed air hose with quick connection system, professional earthing clamp with 2m cable (10mm²), cutting torch with cutting cable (total length 2.5m)
- Power cable length: 2m

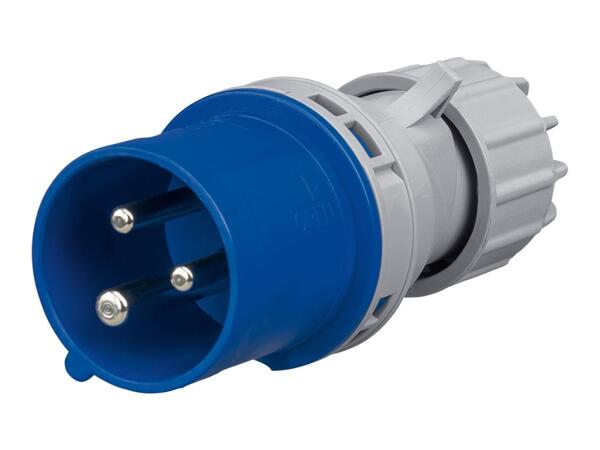

- The device is fitted with an industrial plug
- Both conducted and radiated interference can make it difficult to ensure electromagnetic compatibility in these areas
- 5-year warranty
